BruteForce USA

18-24 Diesel

18-24 Diesel

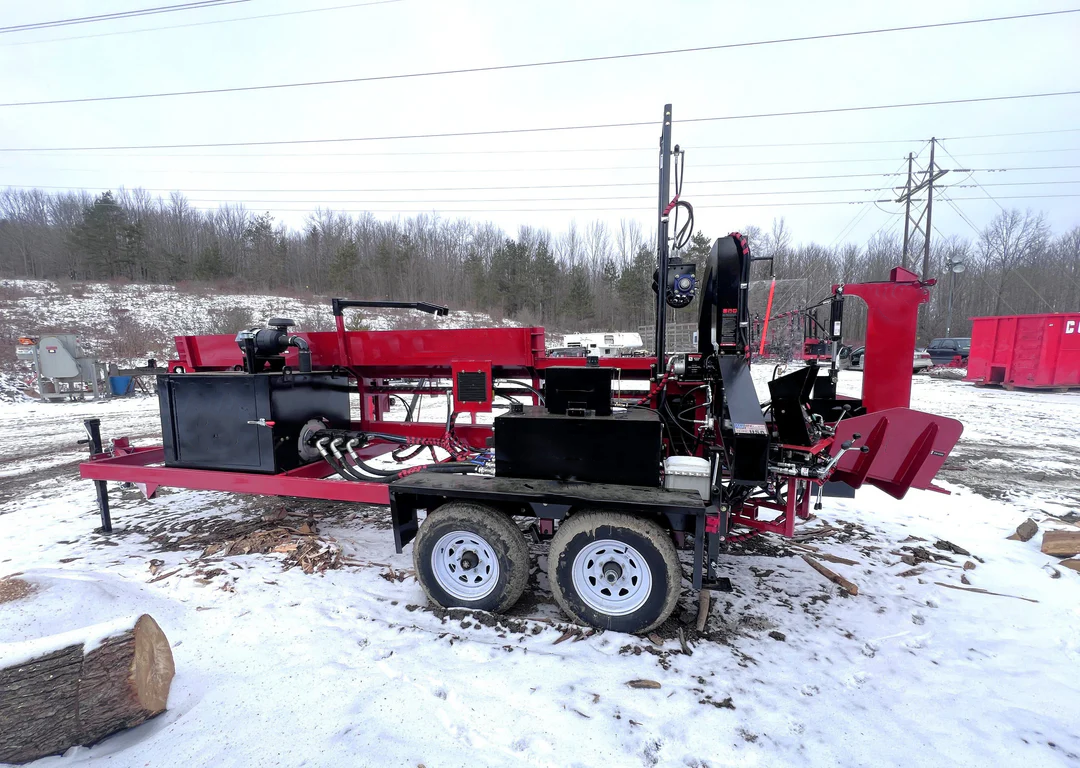

Firewood Processor

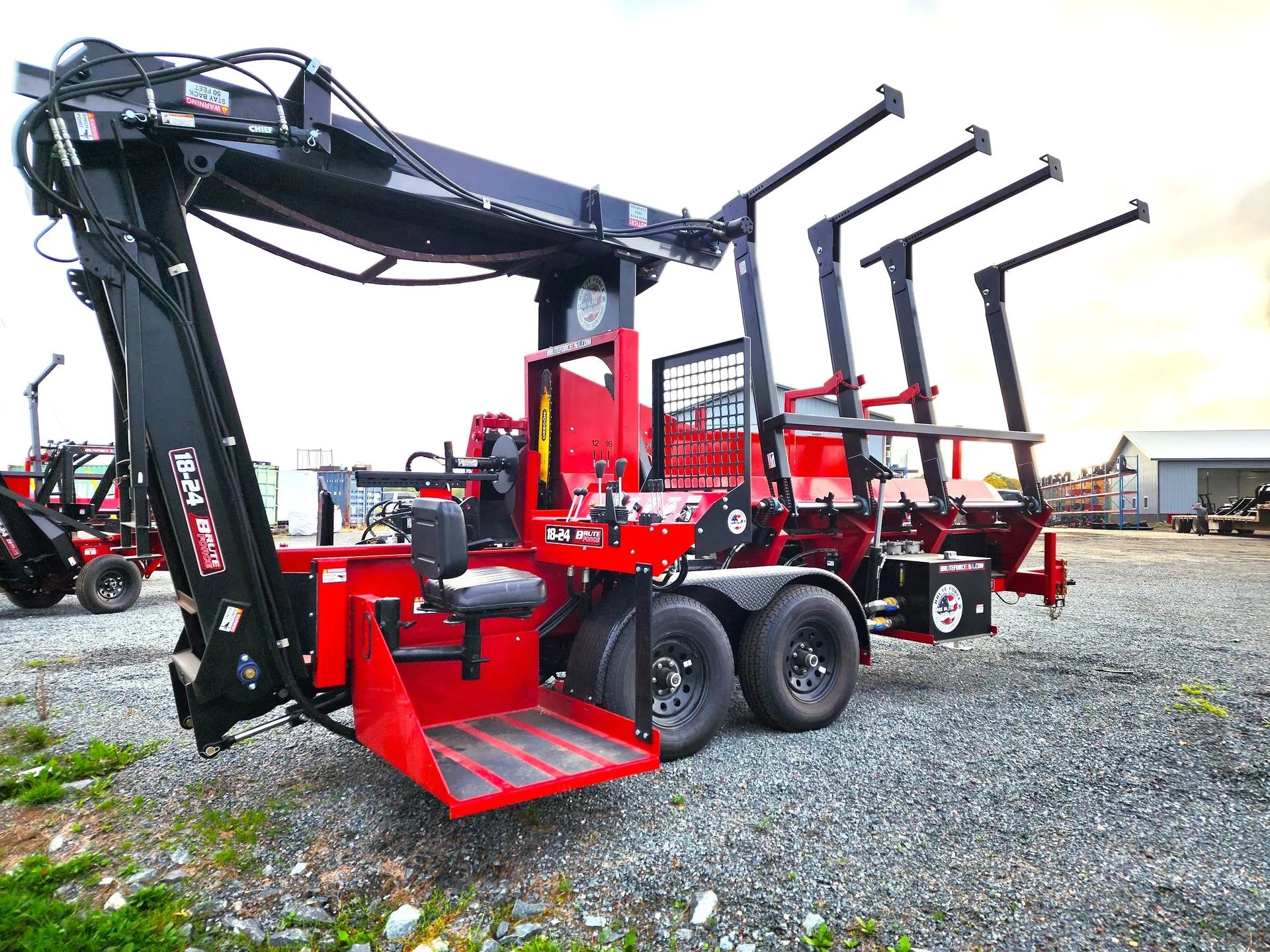

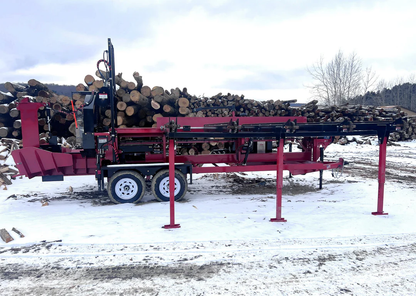

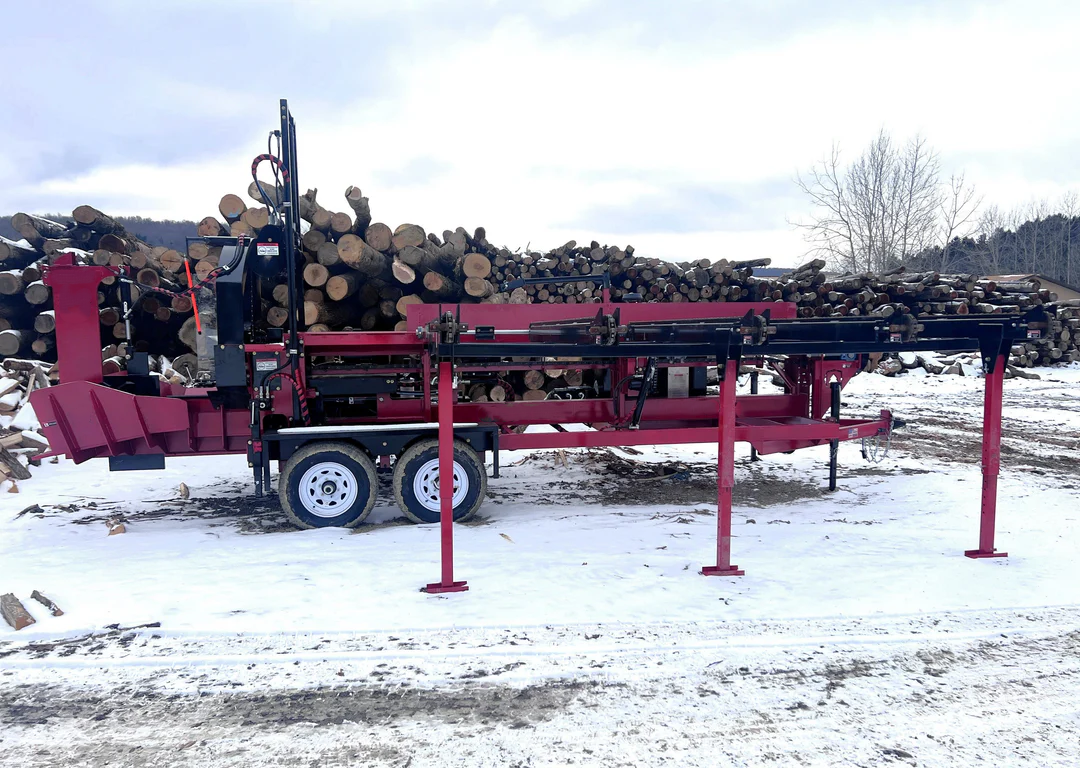

Machine includes 4-Way Wedge and 3-Strand Live Deck.

Please note machines pictured may have options not included in base models. Speak with your sales rep about all possible options.

$100,000.00 USD
$100,000.00 USD
Sale Sold out
Cylinder Options
Live Deck Options
Integrated Conveyor Options

One Year Warranty on All Equipment and Three Year Warranty on Engine from Manufacturer

View full details

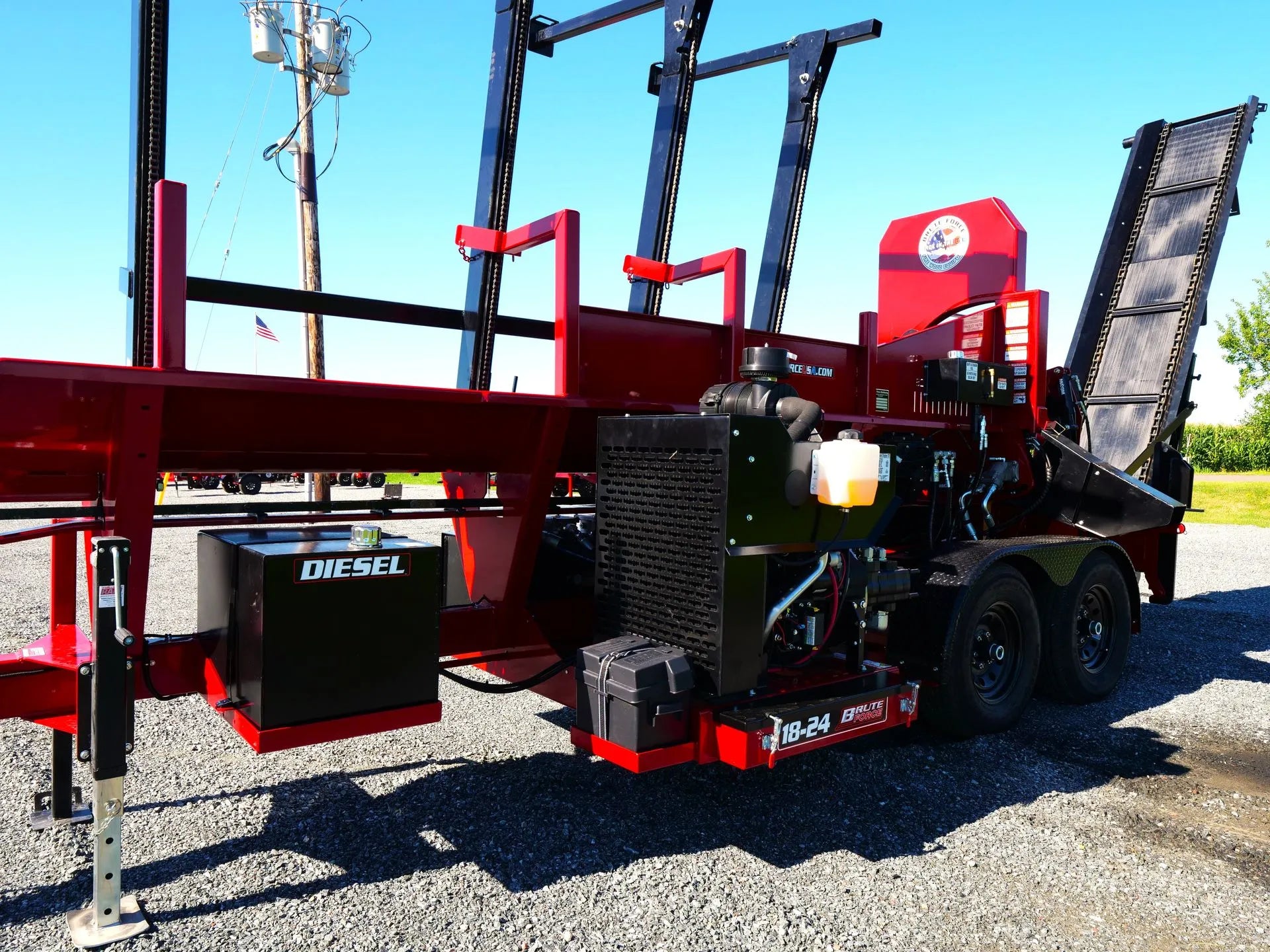

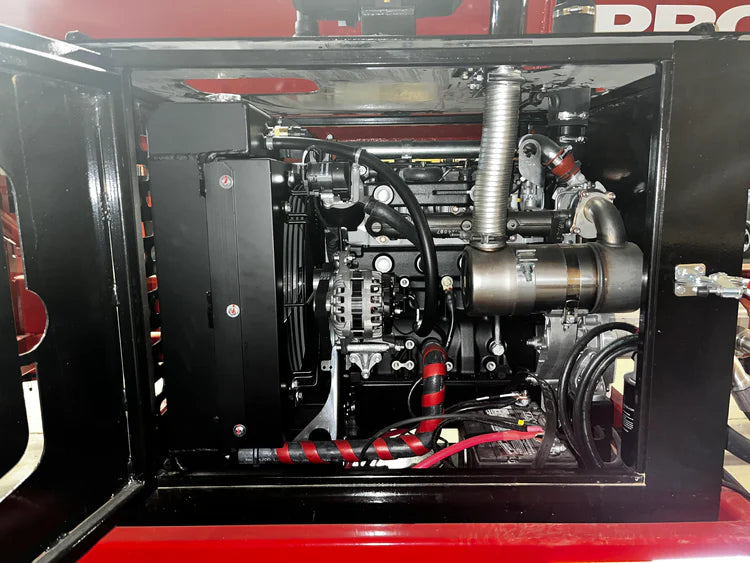

  • The BruteForce USA 18-24 Diesel is a big production firewood processor in a medium, manageable package. The 18-24 Diesel log processor comes standard with a 74HP Hatz diesel engine and 33-22-14 GPM triple hydraulic pump, making this machine a great choice for the firewood producer who requires production day in and day out.
  • The 18-24 Diesel is one of the fastest processors in its class, capable of producing up to 5 cords of firewood per hour from logs wide as 24" in diameter.

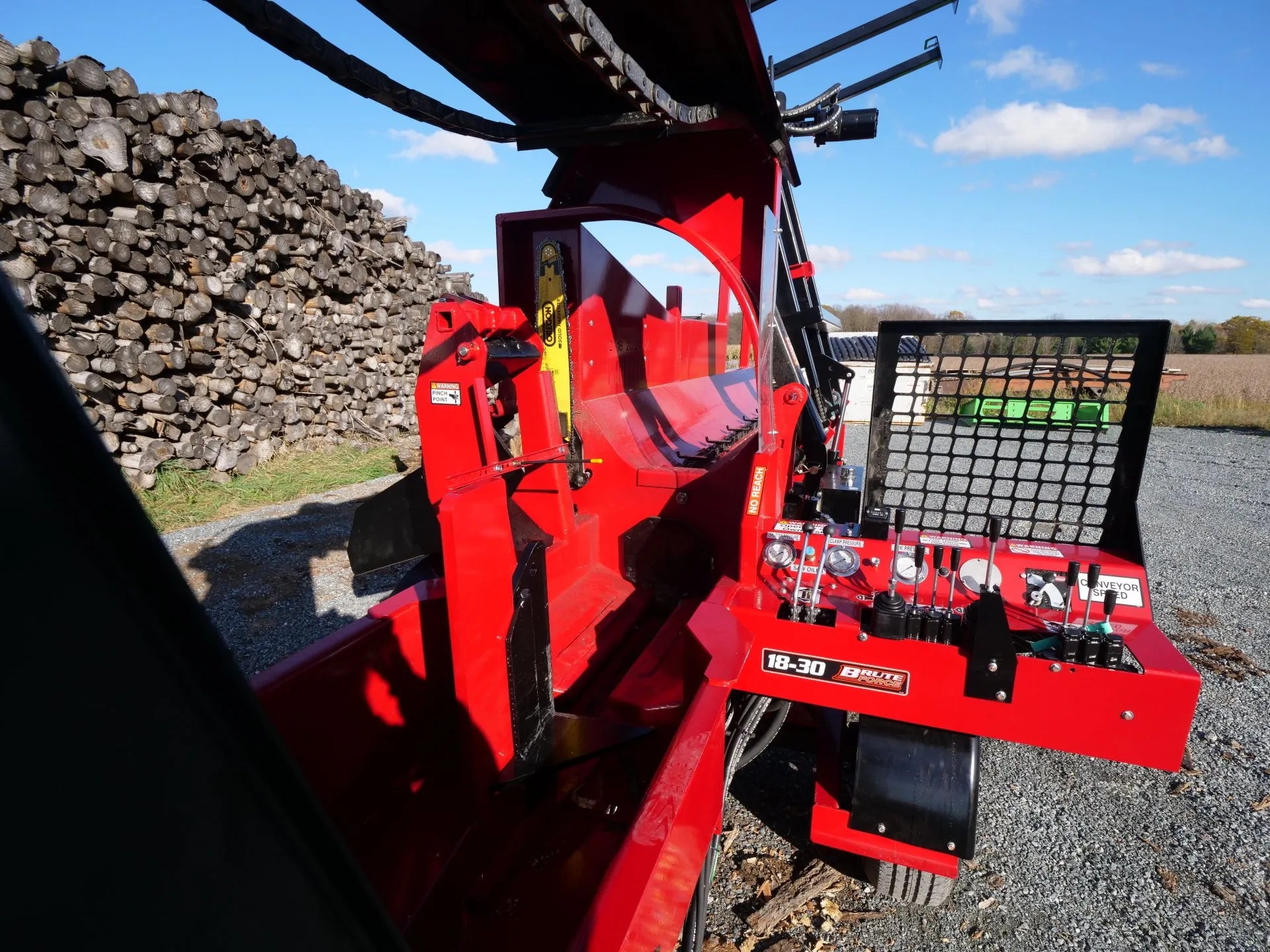

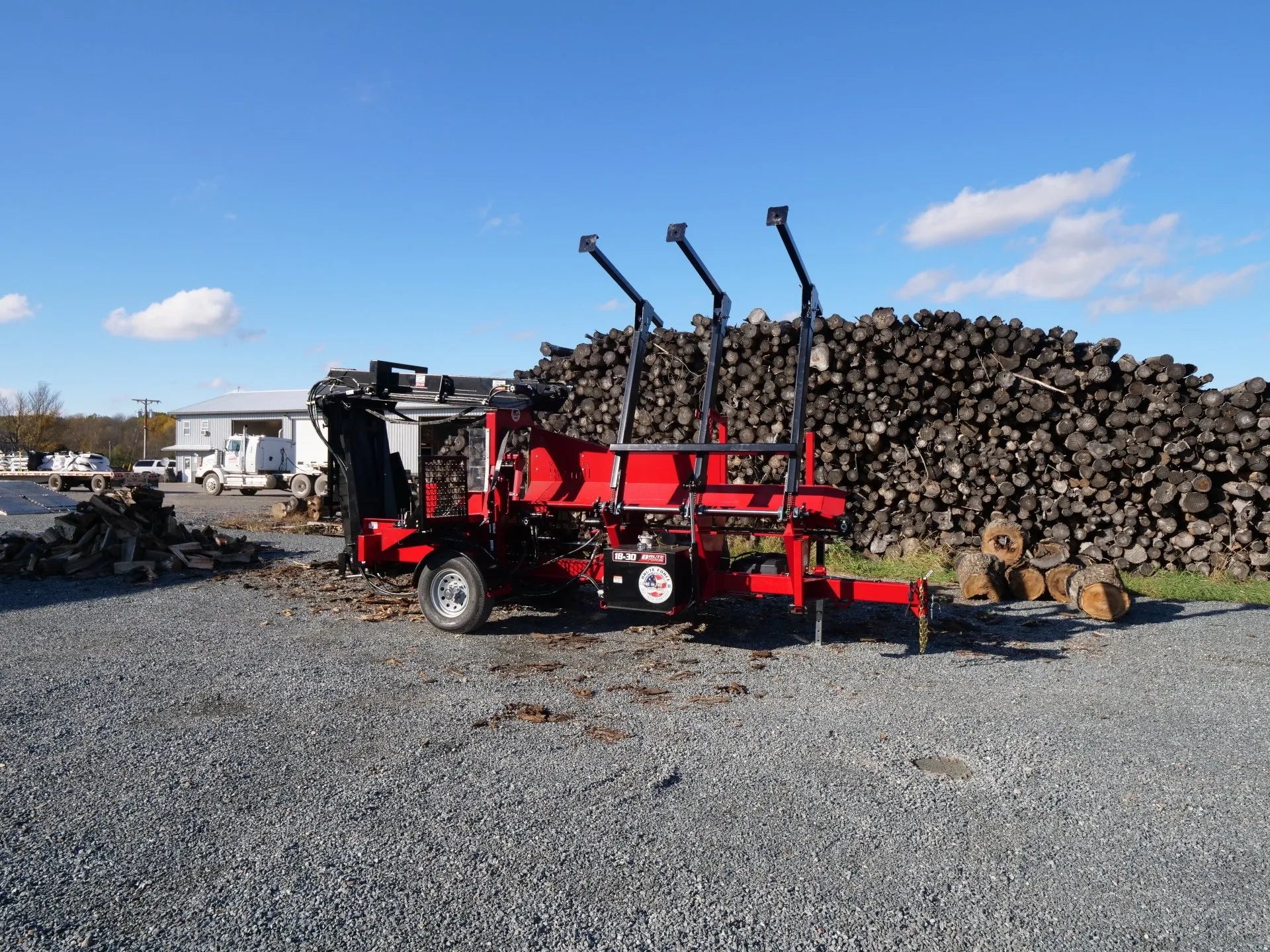

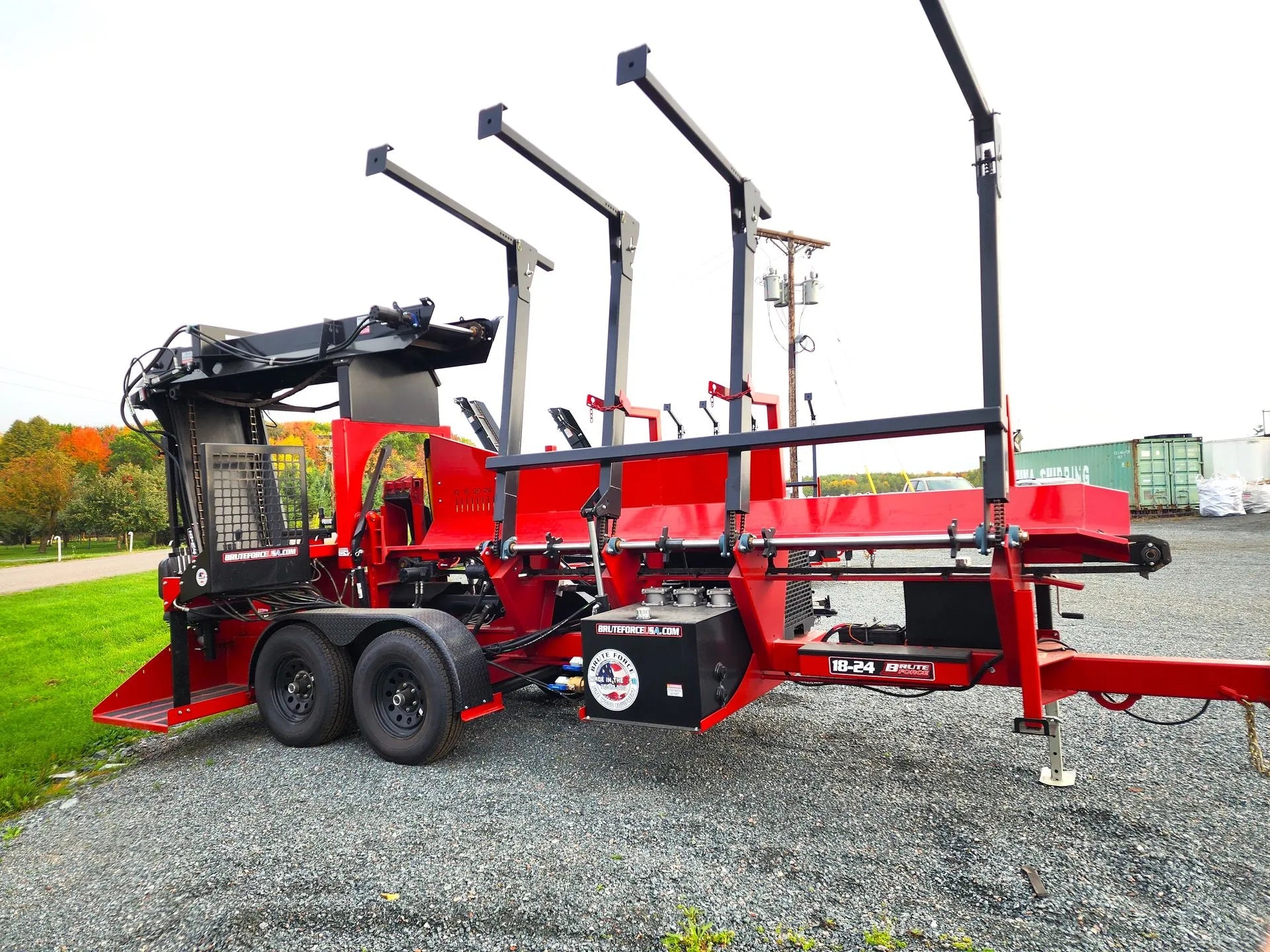

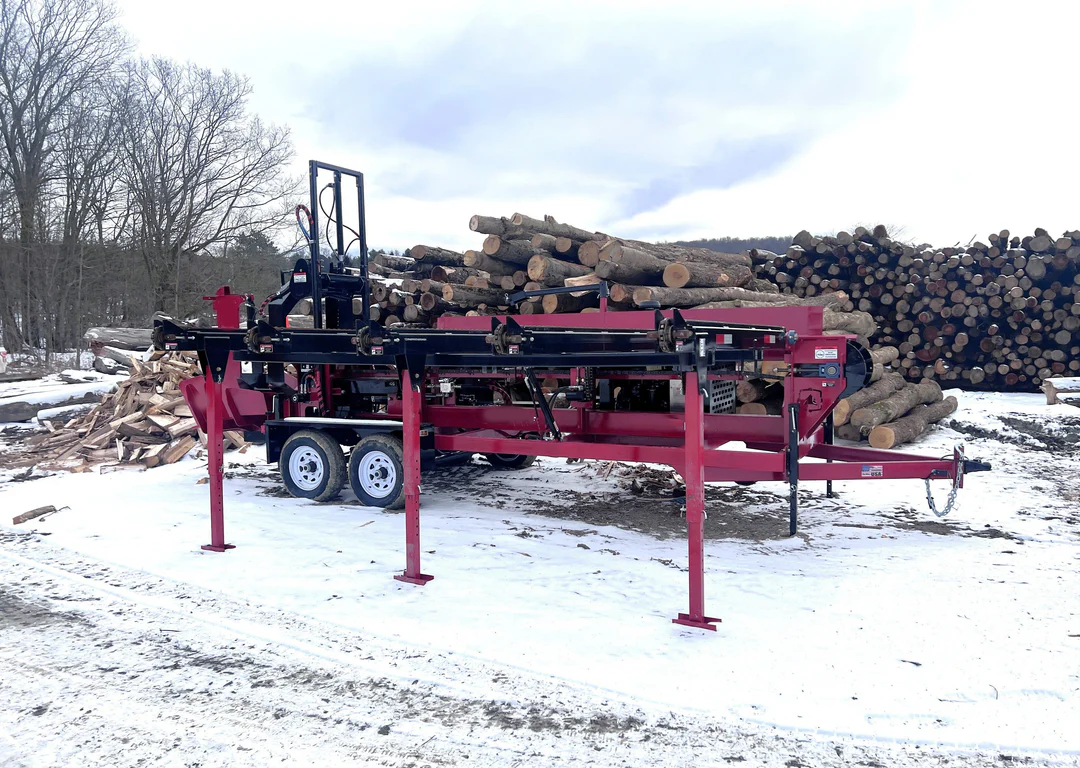

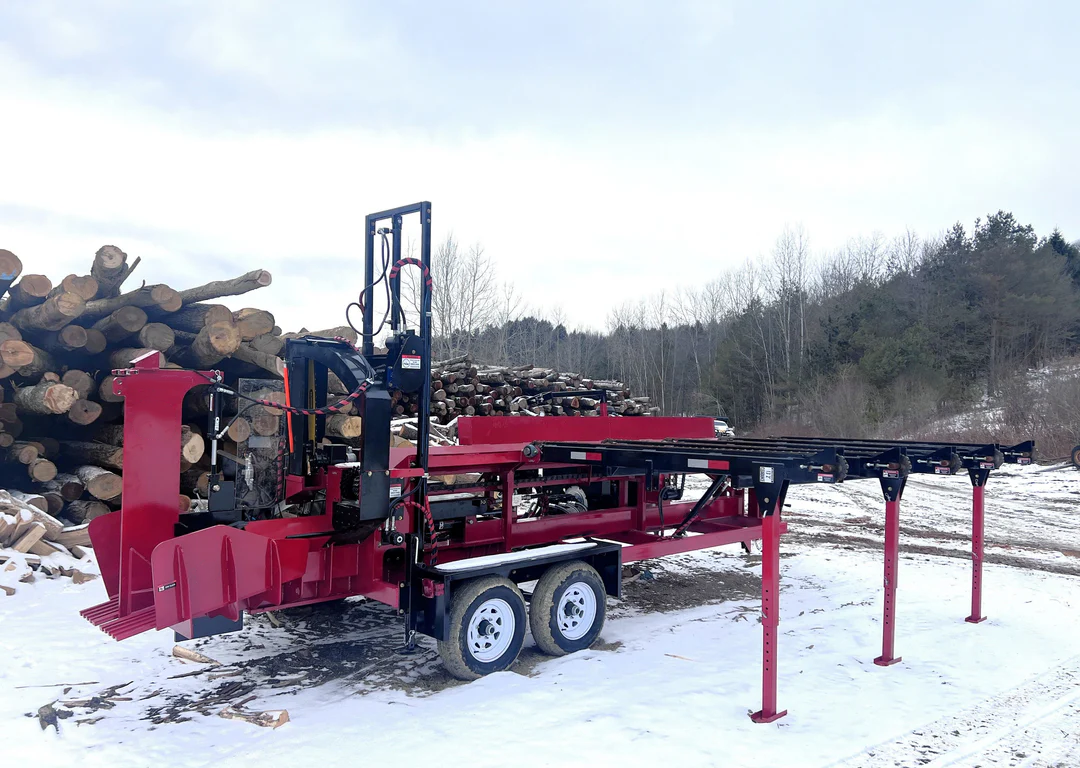

  • The 18-24 Diesel firewood processor comes standard with a 3-strand live log deck, easily raised and lowered hydraulically with a lever on the operator control panel.

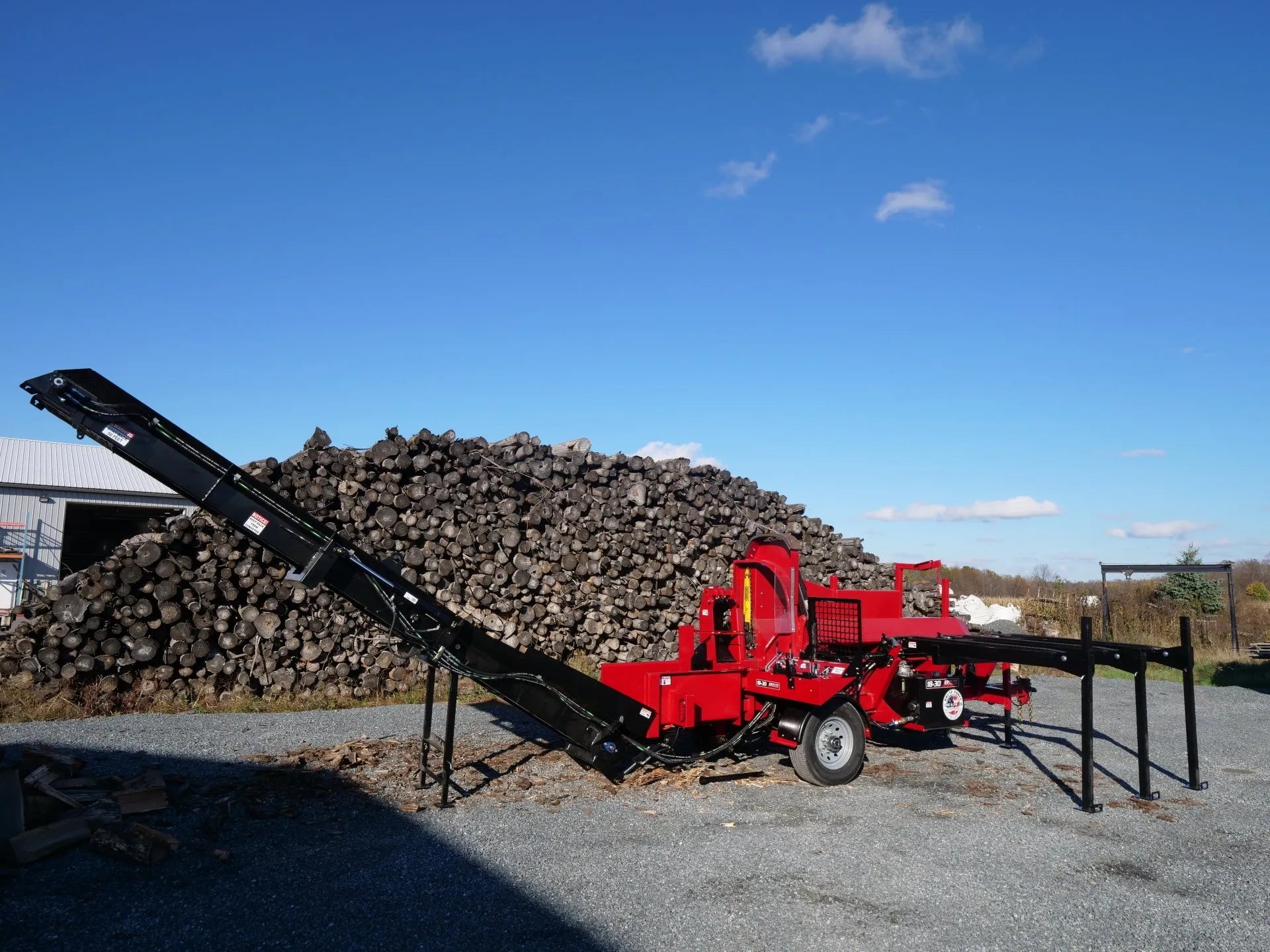

  • The integrated conveyor swings 3ft left and right, allowing the operator to easily load firewood into a trailer or truck box (even with high sides). The hydraulic saw bar, log clamp, live log deck, and log in-feed trough are all all joystick controlled for ease of use.
  • The 18-24 Diesel comes equipped with 4-way splitting wedge (can be raised and lowered at the push of a lever), electric autocycle, 70 gallon hydraulic tank, and regeneration valve.

Diesel Power in a Manageable Package

  • Hydraulic Pump: 33-22-14GPM
  • Splitting Cylinder Stroke: 26-Inches
  • Splitting Cylinder Diameter: 4 or 5" Bore
  • Splitting Force: 28-Tons
  • Hydraulic Tank Cap: 70-Gallons

Simple Operation, Big Production

The BruteForce 18-24 Diesel is a big production firewood processor in a medium package. The 18-24 Diesel comes standard with 74HP Hatz diesel engine and 33 gallons per minute triple hydraulic pump. This makes it a great choice for the firewood producer who needs production day in and day out.

Enhanced Traction

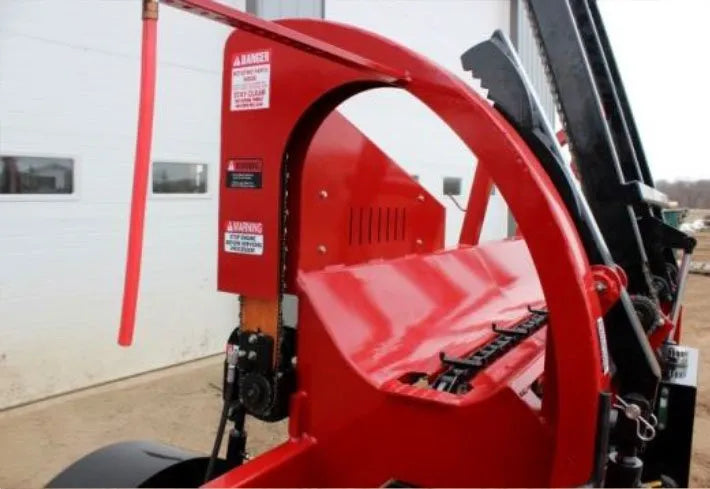

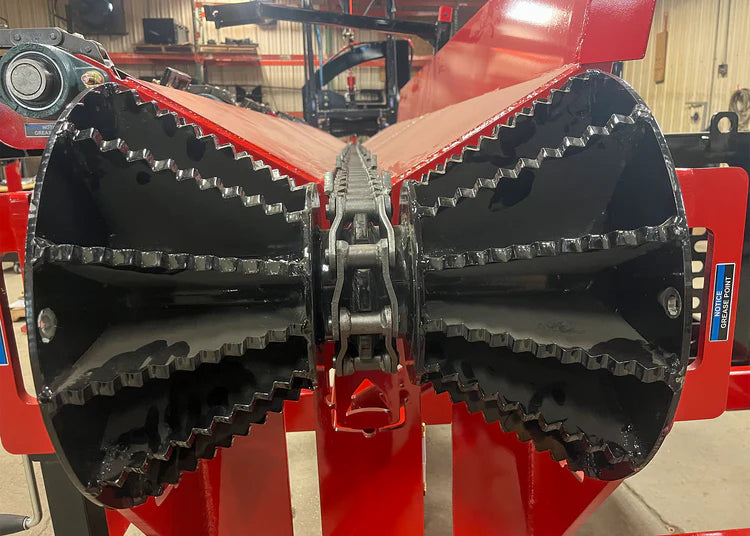

The 18-24 log processor features an hourglass-shaped back roller that feeds logs toward the top roll clamping system. The teeth on the back roller engage logs and can move them forward or backward for adjustments, so operators can position forward-moving logs for a clean and quick cut. This system allows the operator to process logs longer than 32' and as wide as 24" in diameter.

  •
    Engine Power (HP) 74
    Pump Flow (GPM) 33-22-14
    Cylinder Bore (in) 4/5
    Splitting Force (ton) 28
    Cycle Time (sec) 3/4.5
    Average Output (Cord/Hr) 5
    Weight (lbs) 9,900

  • Standard Features

    • Electric autocycle
    • 70 gallon hydraulic tank
    • 3-Stage gear pump
    • Regen valve
    • Top roll clamping system and back roller
    • 3-Strand live deck
    • Saw: 25" cut/.404 chain
  •

    Optional Features

    • Cylinder options:

    4" bore, 3" rod, 26" stroke

    5" bore, 3.5" rod, 26" stroke

    • 5-strand live deck
    • Integrated conveyor
  •

    Integrated Conveyor

    • 12' long with 10'10" max loading height
    • 20" wide paddle belt
    • Fully reversible for simple set up and attachment
1 4

Dimensions

  • Length: 26-Feet

    Width: 8-Feet 4-Inches

    Height: 10-Feet 8-Inches

    Weight: 9,900 Pounds
