Ultimate Power
The BF-10 large log splitter is powered by a 74HP Diesel engine for maximum power and efficiency, allowing the oversized wood splitter to slice through monster logs with low fuel consumption.
An 8 inch cylinder allows the push block to split with 150,000 pounds of splitting force, more than enough to split extra large and gnarly logs. With autocycle, the cylinder cycles every 54 seconds.
Oversized Frame

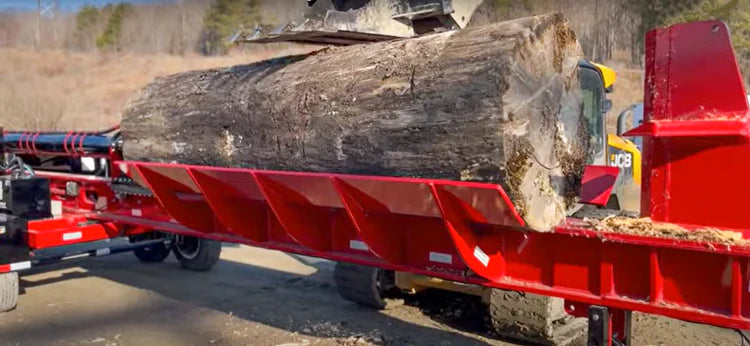

The BF-10 splitting chamber is 12 inches deep so the splitter can handle logs as wide as 5 feet in diamter. 3/4" plate steel log cradles secure forward moving logs as the push block drives them along two 1" plates that run through the center of the splitting chamber, with additional 1" plates on the top and bottom for maximum durability. The 8" cylinder and engine functions are supported by a 2x5 3/16" wall frame.
The large log splitter is equipped with a 110 gallon hydraulic tank and 20 gallon fuel tank, enabling operators to run the machine for 8-10 hours without a break in production.
Remote Control Operation
A control panel mounted on the frame is used to turn on and off the BF-10 and make throttle adjustments. Once the machine is turned on, operators can control the push block via remote control, allowing users to operate the machines from the comfort and safety of their truck or skid steer cab.
