BruteForce USA

BF-6

BF-6

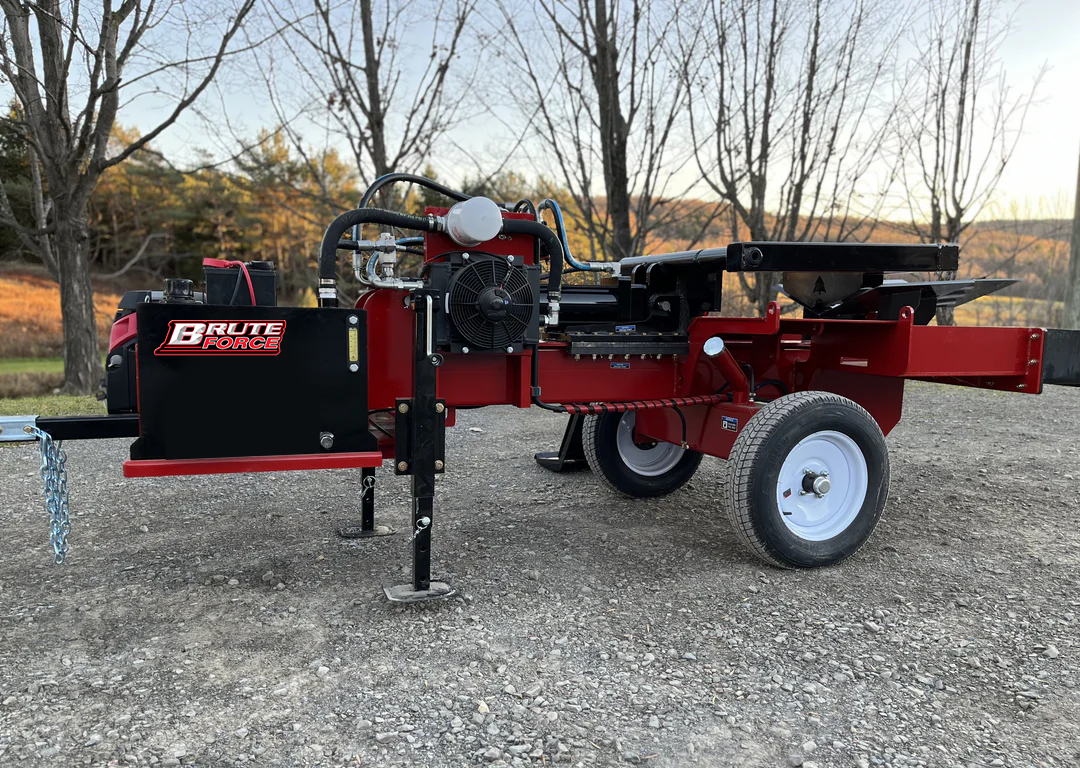

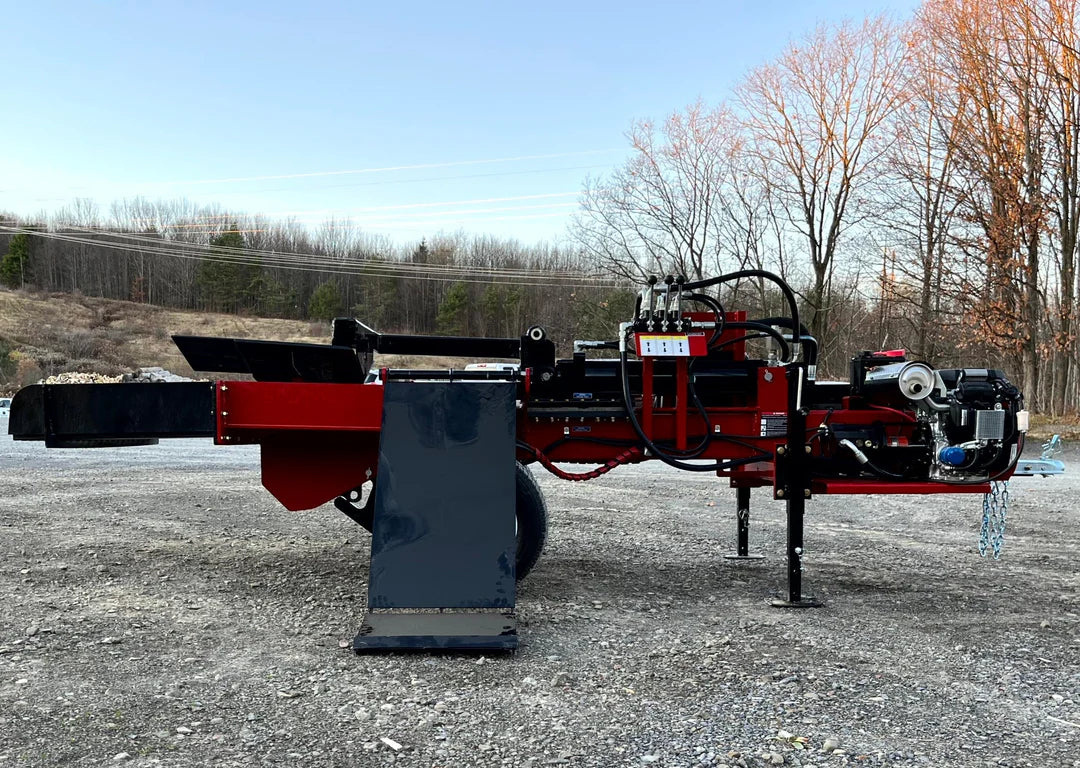

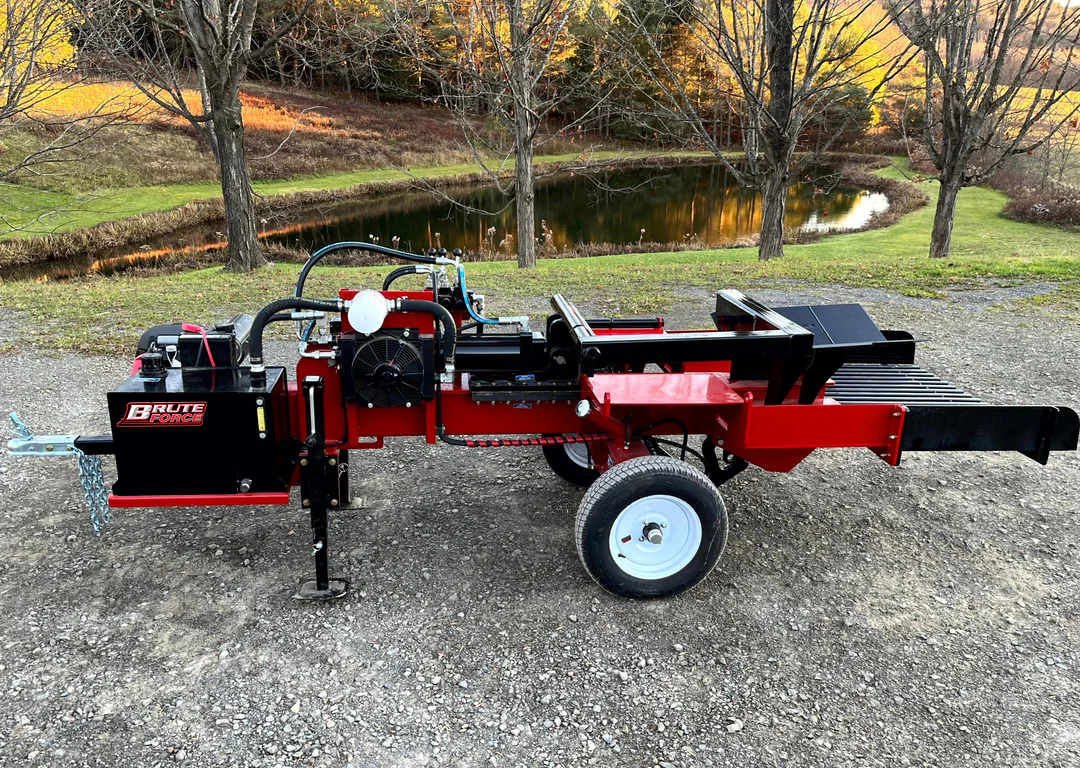

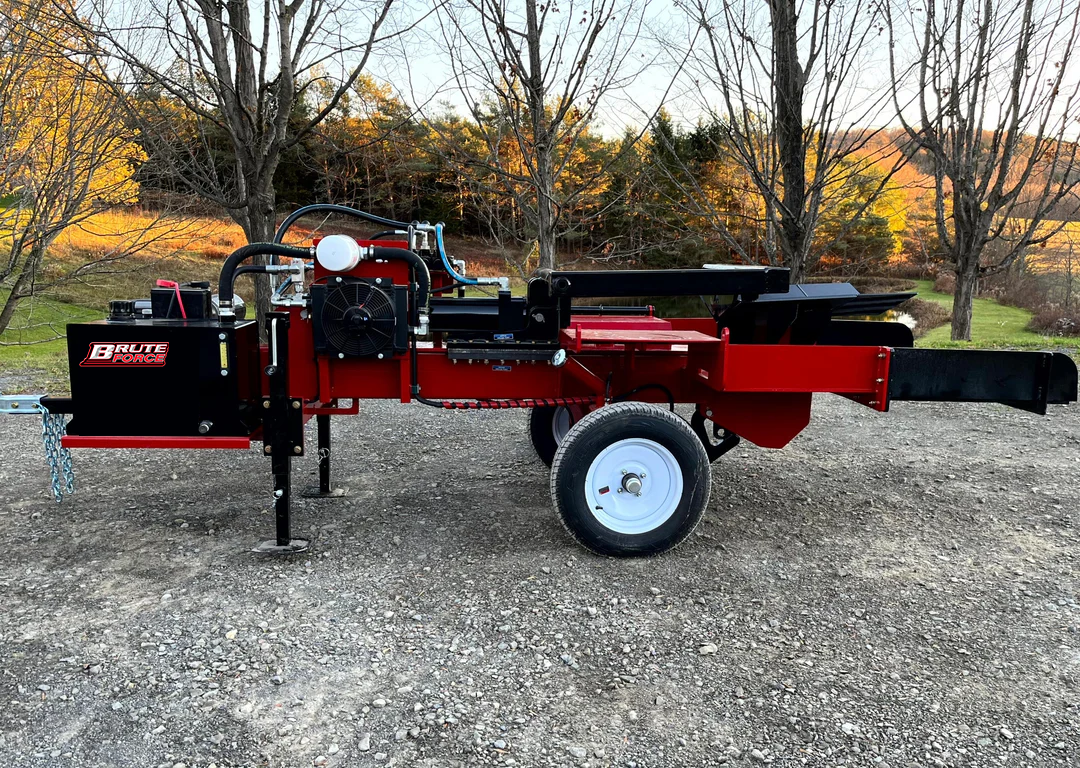

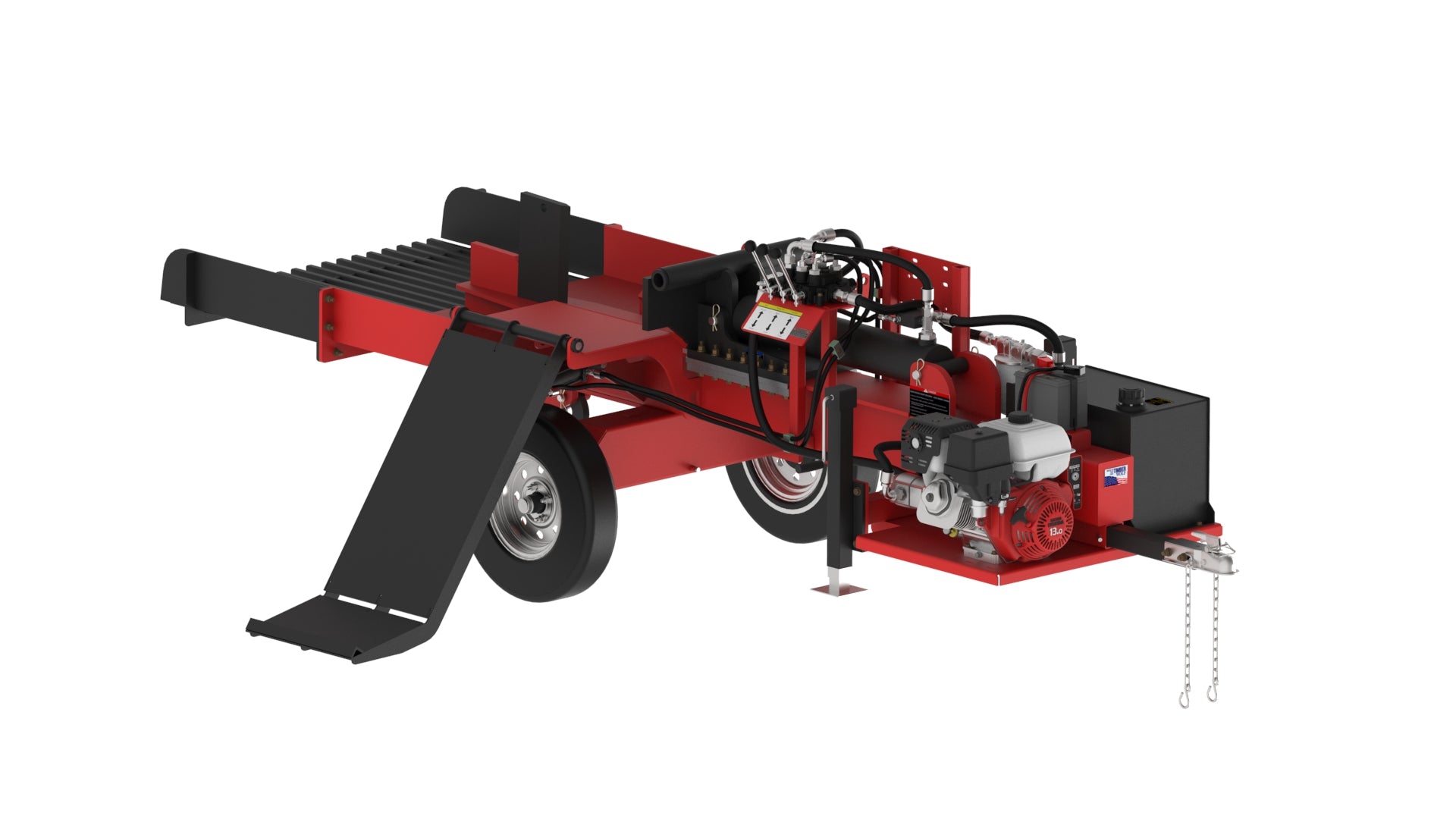

Log Splitter

Machine includes 4-Way Wedge, Sorting Table, and Hydraulic Log Lift

Please note machines pictured may have options not included in base models. Speak with your sales rep about all possible options.

$16,500.00 USD
$16,500.00 USD
Sale Sold out
Engine
Cylinder
Box Wedge Options

One Year Warranty on All Equipment and Three Year Warranty on Engine from Manufacturer

View full details

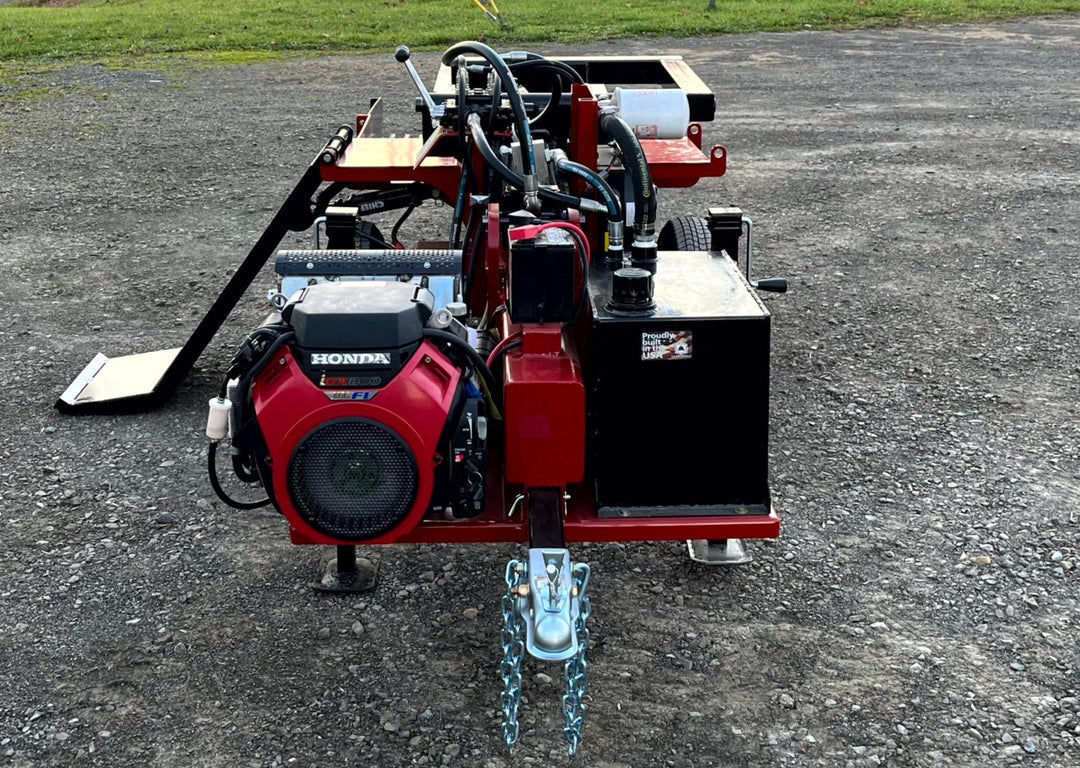

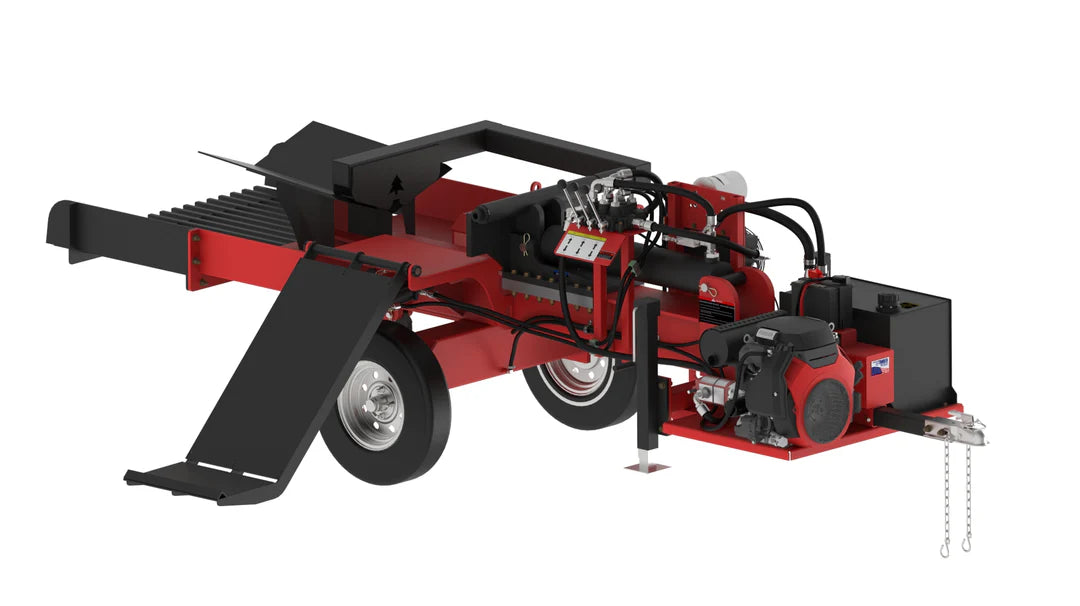

  • Our top-of-the-line commercial log splitter, the BF-6 is capable of producing up to 2 cords of uniform-sized firewood per hour. This heavy-duty firewood splitter is equipped with a 22.1HP Honda GX700 engine that offers excellent fuel economy and allows operators to work for extended periods without unnecessary production stoppages.
  • The BF-6 industrial-grade log splitter comes standard with 5" hydraulic cylinder, which has the power to split gnarly blocks with 58,906 lbs of splitting force. The firewood machine has an average cycle time of just 7 seconds, the result of the splitter's 22HP engine in combination with the regeneration manifold which allows the rod to extend from the cylinder more rapidly without requiring a greater pump flow.
  • While other commercial log splitters may offer similar splitting forces, the Box Wedge with floating auto-retract arm sets the BF-6 apart from the competition. The heavy-duty box wedge creates evenly-sized wood and the auto-retract arm pulls the un-split portion of the log back into the splitting chamber. This allows operators to burn through large blocks without re-handling. Our box wedges are available in three sizes, so operators can choose the right wedge for the job at hand.
  • The best commercial log splitter features a hydraulic log lift and wedge lift. The log lift can handle 500 pound logs and can be installed on either side of the machine, to fit the needs of every project and location. The wedge lift raises and lowers the wedge with 8" of vertical range at the push of a lever, so users can center the wedge to different-sized logs without any manual effort or wasted time.
  • The BF-6 industrial firewood splitter also features a 40" wide by 36" long sorting table. This table acts as a grate and funnel, containing split logs and readying them to move onto a wood conveyor or be stacked with minimal debris.

Box Wedge Advantages

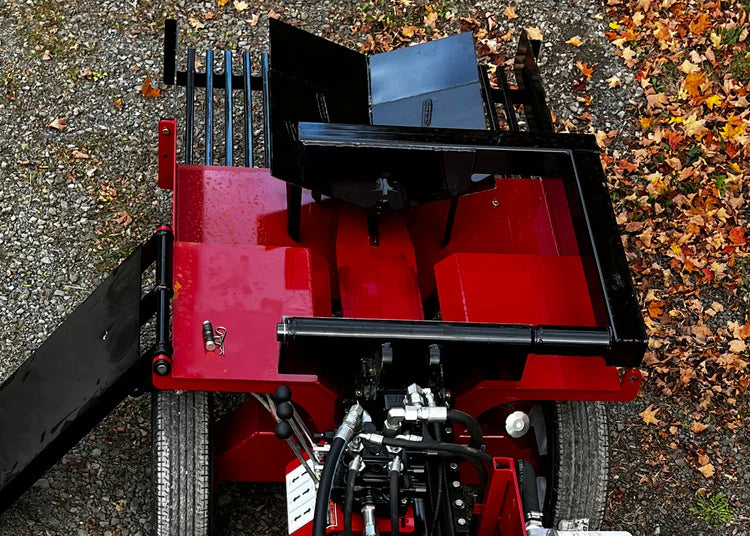

BF-6 box wedge options feature our innovative floating auto-retract arm. This heavy-duty arm pulls un-split log portions back into the splitting chamber, minimizing operator re-handling. With three size options, this unique wedge style is designed to easily produce uniform-sized firewood.

Sell perfect cord wood, packages firewood, camp, and cooking wood with this box wedge log splitter.

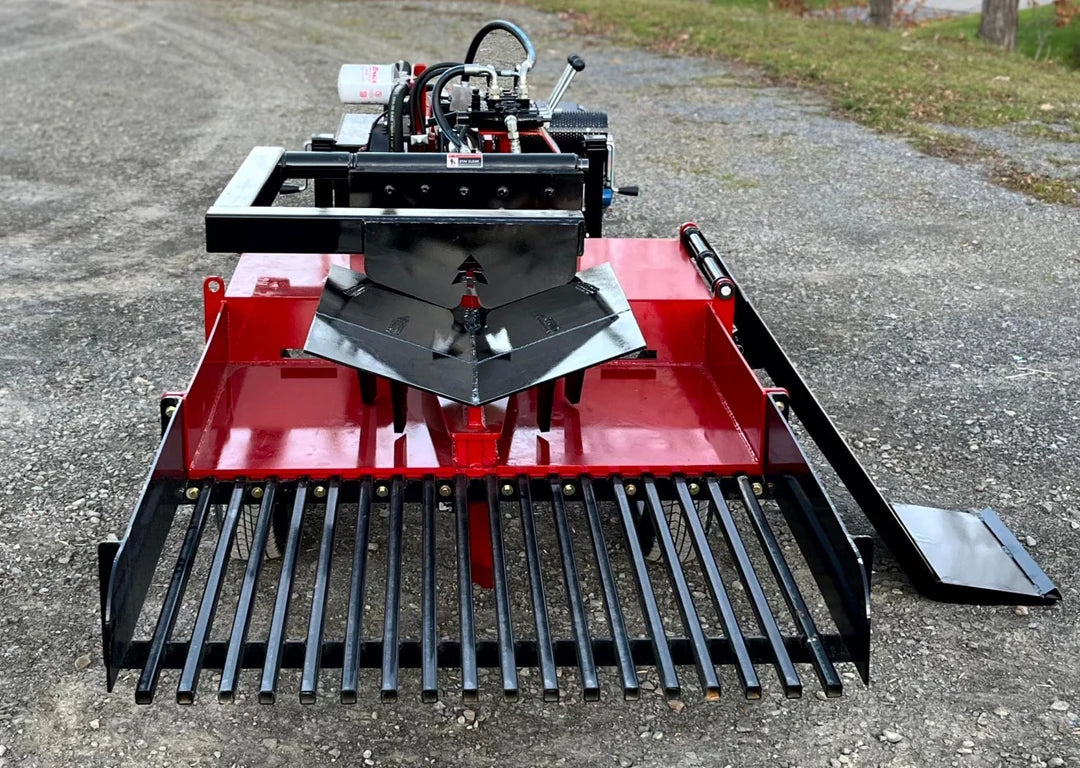

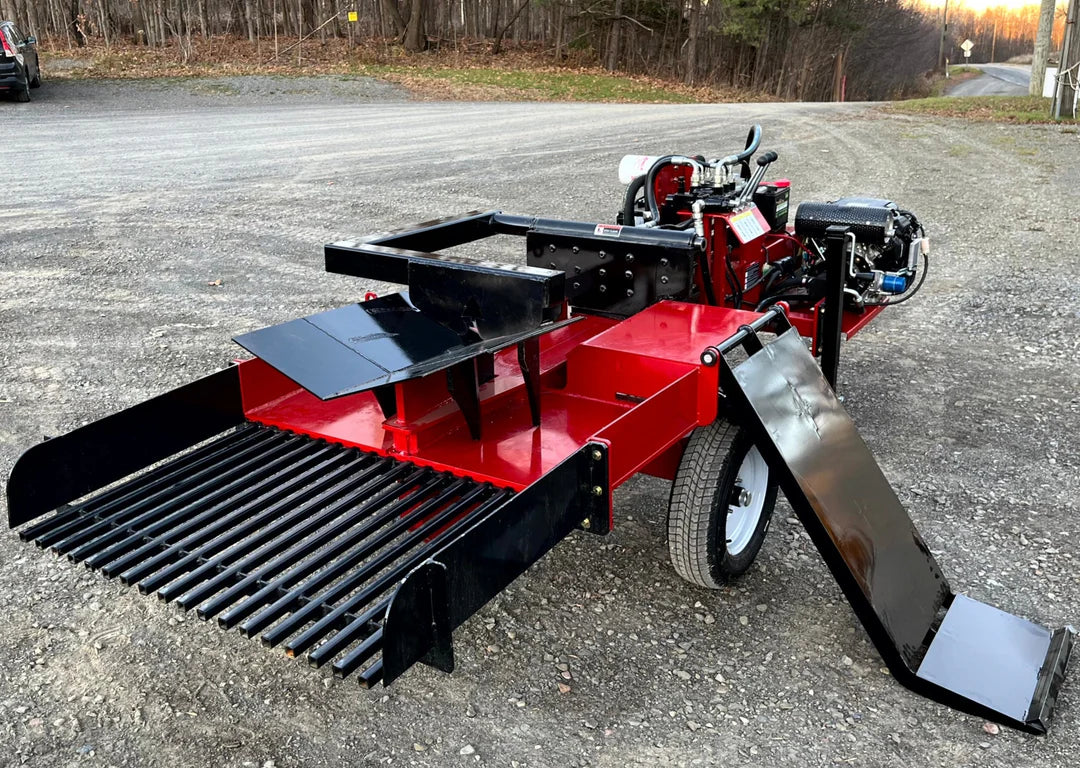

Minimal Debris, Maximum Production

A 40" wide by 36" long sorting table, constructed from heavy gauge pipe and American-made plate steel separates unwanted debris from split logs and acts as a funnel, perfect for operations that use a conveyor as the next step in firewood production.

Increased Stability

With a 12' long plate steel frame weighing 2550 lbs, the BF-6 commercial wood splitter is overbuilt to take on any firewood splitting task year after year. Dual jacks provide rigid stability for the heavy-duty box wedge splitter.

  •
    Engine Power (HP) 22.1
    Cylinder Bore (in) 5
    Splitting Force (lbs) 58905
    Cycle Time (Sec) 7
    Average Output (Cord/Hr) 2
    Weight (lbs) 2550

  • Standard Features

    • American-made hydraulic cylinder:

    5" bore, 3.5" rod, 26" stroke

    • Fuel-efficient and economical engine
    • Easily towable
    • Hydraulic log lift rated to 500 lbs
  •

    Sorting Table

    • Standard with integrated sorting table which provides a catch pan for logs that need to be resplit as well as a filter for fines
    • Funnels firewood into one clean pile, perfect for loading onto a wood conveyor or into a truck
  •

    Box Wedge Options

    • 4.5" for cord wood
    • 3.5" for packaged firewood
    • 2.5" for cooking wood
    • 2, 4, and 6 way wedges available
1 4

Dimensions

  • Height: 49-Inches

    Width: 49-Inches

    Length from End to Hitch: 163-Inches

    Gross Weight: 2500 Pounds

    Standard Hitch: 2-Inch Ball
