BruteForce USA

BF-Auto

BF-Auto

Log Splitter

Machine includes 4.5" Box Wedge Wedge, Sorting Table, and Hydraulic Log Lift

Please note machines pictured may have options not included in base models. Speak with your sales rep about all possible options.

$14,995.95 USD
$14,995.95 USD
Sale Sold out
Cylinder
Box Wedge Options

One Year Warranty on All Equipment and Three Year Warranty on Engine from Manufacturer

View full details
  • The BF-Auto heavy-duty wood splitter is equipped with a 22HP Honda GX700 fuel-injected engine that powers the firewood machine's hydraulic functions, like the log lift, capable of loading 500-pound logs, hydraulic system, and cylinder bore. The 22 HP engine, the heart of the box wedge log splitter's performance, offers excellent fuel economy and allows the operator to work for extended periods without unnecessary production stoppages.
  • The BF-Auto box wedge wood splitter is equipped with a 4" or 5” cylinder, which has the power to split gnarly blocks with 37,680 / 58,905 pounds of splitting force. These quick cycle times are the result of the splitter's 22 HP engine in combination with the regeneration manifold equipped to the firewood machine's hydraulics. The regeneration manifold allows the rod to extend from the cylinder more rapidly without requiring a greater pump flow.
  • While other commercial log splitters may offer similar splitting forces, it’s the BF-Auto's Box Wedge that sets this log splitter apart from the competition. The Box Wedge creates evenly sized wood and the floating auto-retract arm pulls back the unsplit portion of the log back into the splitting chamber. This allows operators to burn through blocks without re-handling logs or worrying about varying log sizes.
  • The commercial log splitter features a hydraulic log lift that can handle 500-pound logs, allowing operators to easily lift large blocks onto the splitting chamber or use the lift as a workstation to organize and arrange wood prior to splitting.
  • The BF-Auto commercial firewood splitter wasn’t made with only splitting in mind. Features like the integrated table grate consider the next step of your firewood production, because we know the job isn’t over after the log is split. The table grate acts as a funnel, which contains split logs and readies them to move onto a wood conveyor.

Box Wedge Advantages

The integrated Box Wedge pulls un-split logs back onto the splitting chamber, minimizing operator block re-handling. This unique wedge style is designed to produce uniform-sized firewood. Sell the perfect-sized cord wood, packaged firewood, camp, and cooking wood with this box wedge log splitter.

The Fastest Commercial Log Splitter

If you split wood more quickly, you will be able to split more wood over the course of time.

Now standardly equipped on the BF-Auto box wedge wood splitter, the regen manifold drives a regeneration cycle that allows the rod to extend from the cylinder more rapidly while using the same pump flow.

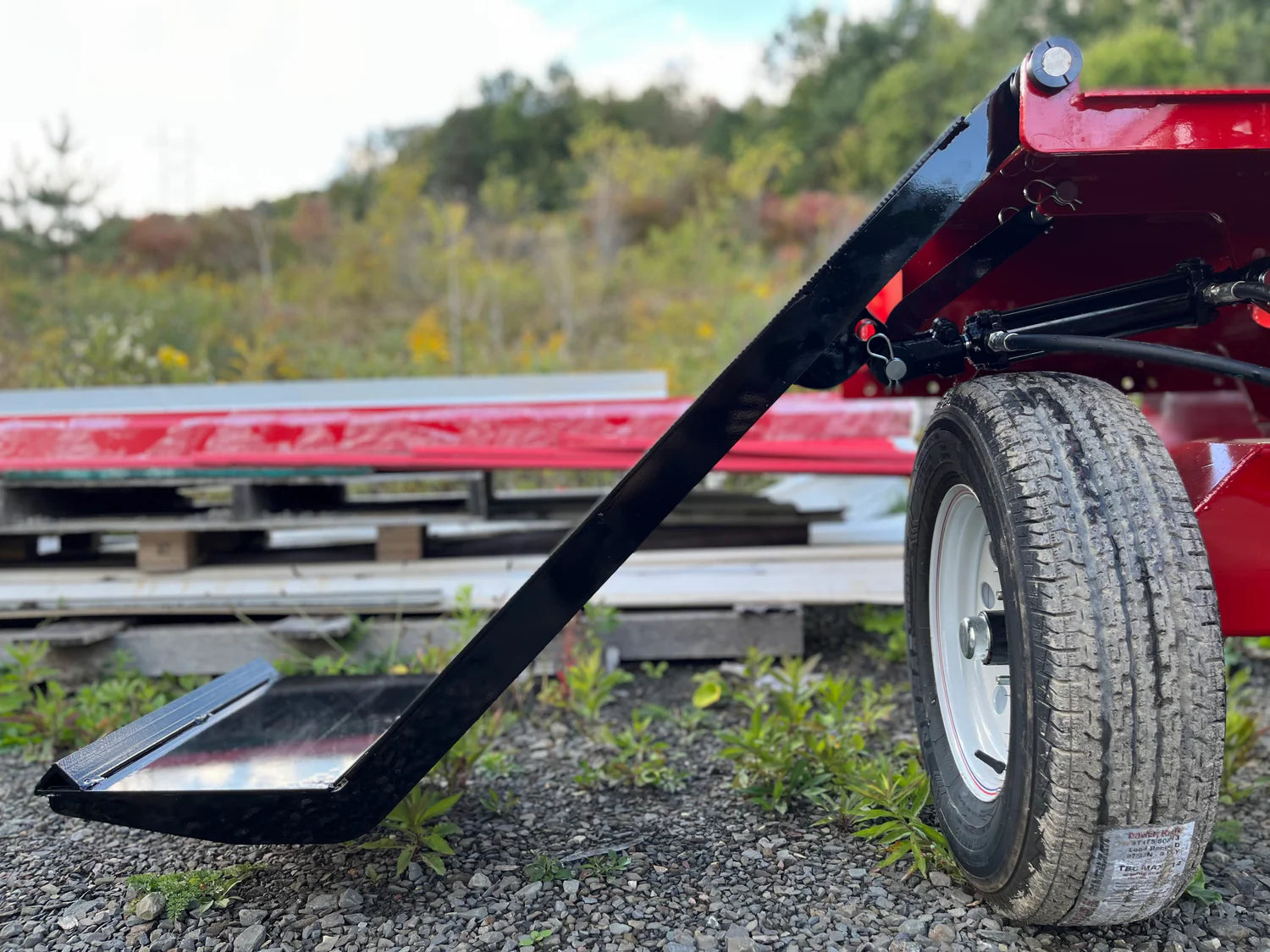

Load Large Blocks Easily

The commercial log splitter features a plate steel constructed hydraulic log lift that can handle 500-pound logs, allowing operators to easily lift large blocks onto the splitting chamber or use the lift as a workstation to organize and arrange wood prior to splitting.

If you can load it, the BF-Auto box wedge firewood splitter will split it.

  •
    Engine Power (HP) 22
    Cylinder Bore (in) 4/5
    Splitting Force (lbs) 37700/58905
    Cycle Time (Sec) 7/10
    Average Output (Cord/Hr) 2
    Weight (lbs) 2550

  • Standard Features

    • Box wedge splits uniformly-sized firewood everytime
    • 4.5" box wedge suitable for cord wood
    • Integrated hydraulics cover for increased lifespan
  •

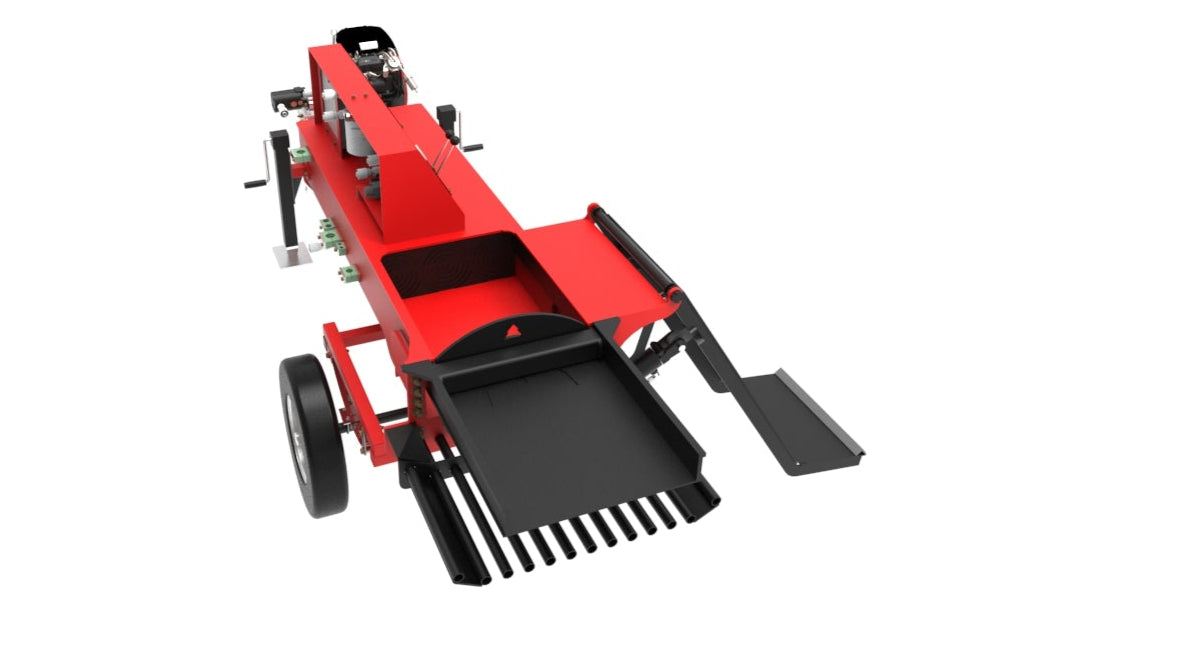

    Sorting Table

    • Standard with integrated sorting table which provides a catch pan for logs that need to be resplit as well as a filter for fines
    • Funnels firewood into one clean pile, perfect for loading onto a wood conveyor or into a truck
  •

    Power

    • 22 HP engine
    • Two cylinder options:

    4" bore, 3" rod, 26" stroke

    5” bore, 3.5” rod, 26” stroke

    • Cycle time: 7 / 10 seconds
    • Splitting force: 37,700 / 58,905 pounds
1 4

Dimensions

  • Height: 49-Inches

    Width: 49-Inches

    Length from End to Hitch: 163-Inches

    Gross Weight: 2500 Pounds

    Standard Hitch: 2-Inch Ball
